API reference

Javelit makes it easy for you to visualize, mutate, and share data. The API reference is organized by activity type, like displaying data or optimizing performance. Each section includes methods associated with the activity type, including examples.

Browse our API below and click to learn more about any of our available commands! 🎈

Display almost anything

Text elements

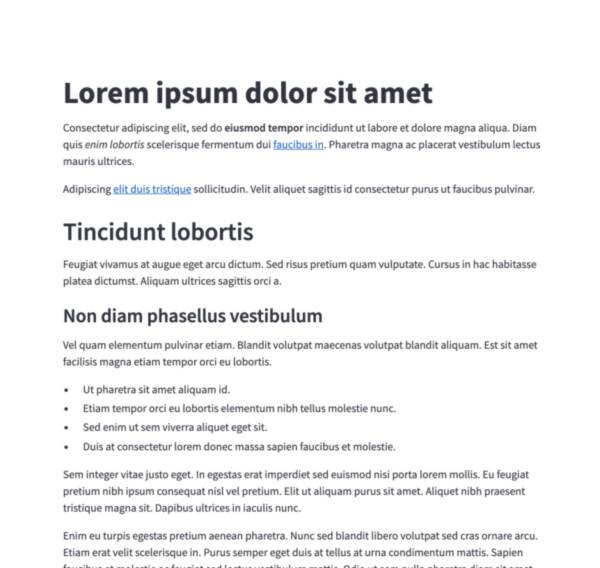

Markdown

Display string formatted as Markdown.

Jt.markdown("Hello **world**!").use();

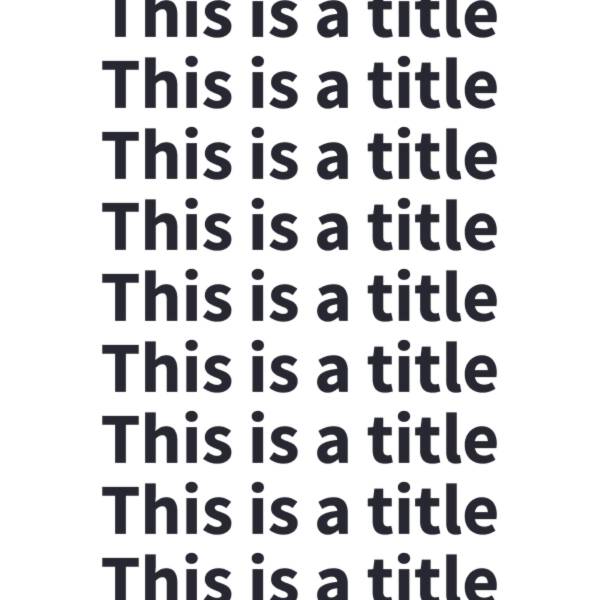

Title

Display text in title formatting.

Jt.title("The app title").use();

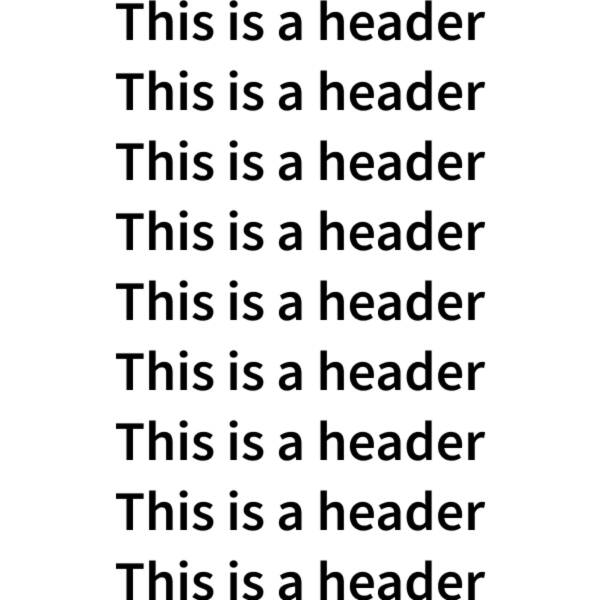

Header

Display text in header formatting.

Jt.header("This is a header").use();

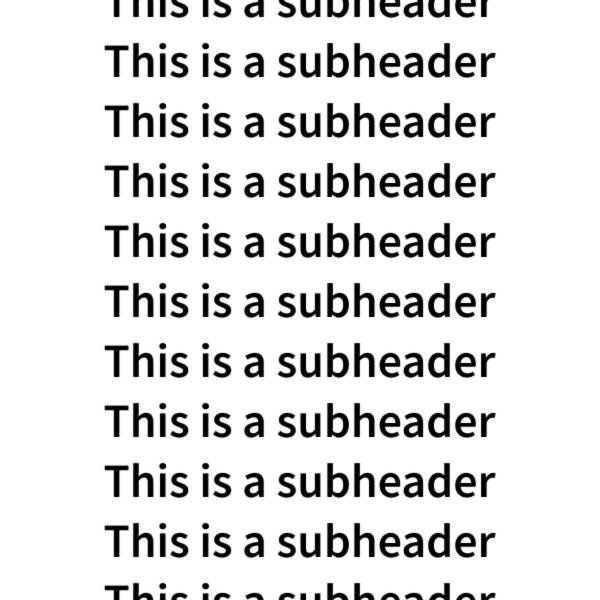

Subheader

Display text in subheader formatting.

Jt.subheader("This is a subheader").use();

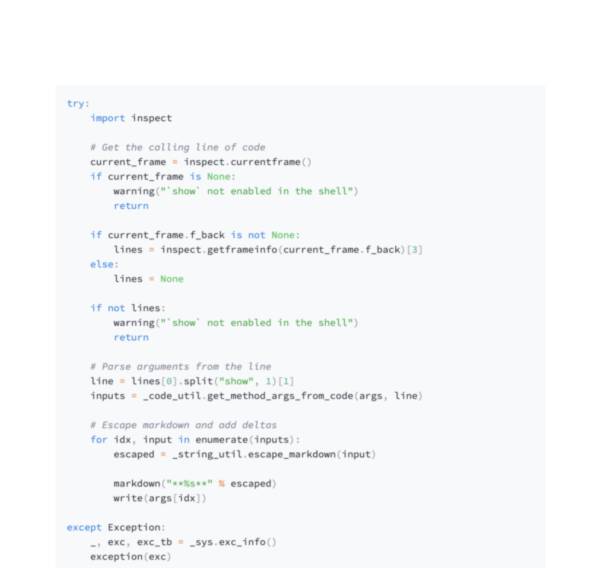

Code block

Display a code block with optional syntax highlighting.

Jt.code("a = 1234").use();

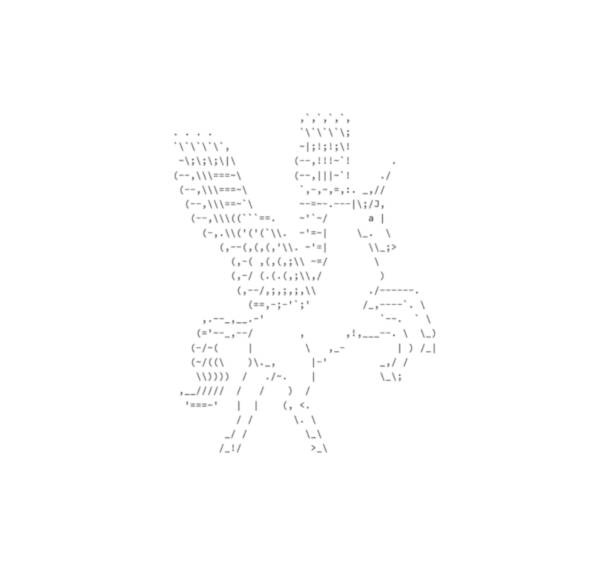

Preformatted text

Write fixed-width and preformatted text.

Jt.text("Hello world").use();

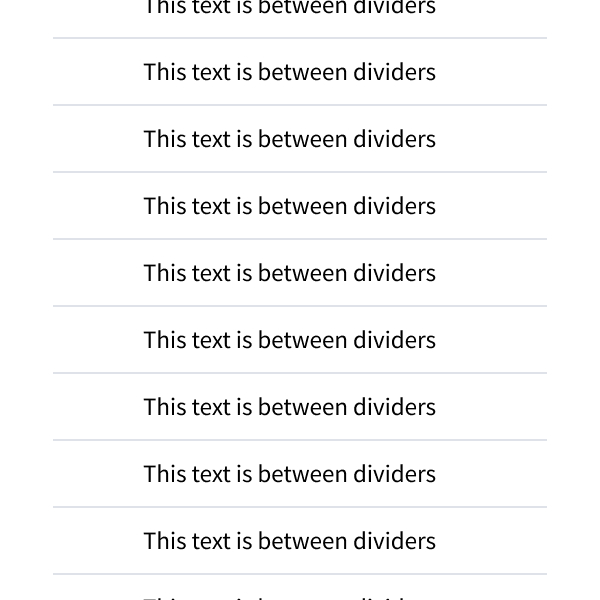

Divider

Display a horizontal rule.

Jt.divider("div-1").use();

Render HTML

Render an HTML string in your app.

Jt.html("<p>Foo bar.</p>").use();

Data elements

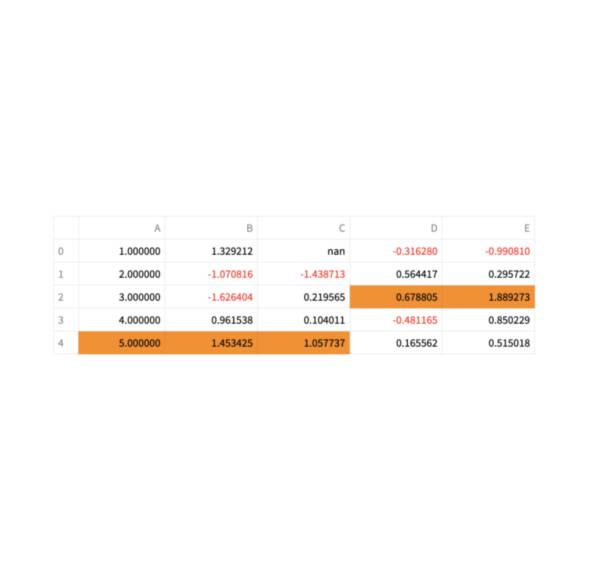

Static tables

Display a static table.

Jt.table(my_data).use();

Chart elements

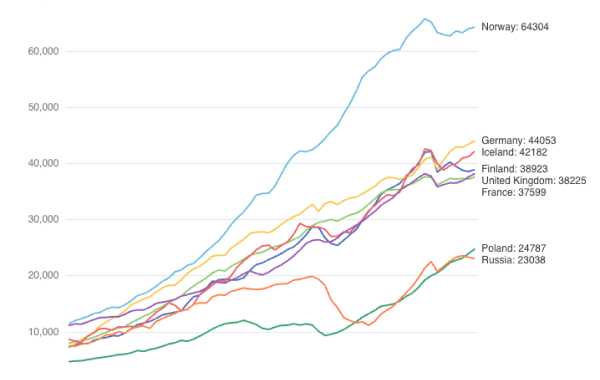

ECharts

Display a chart using the Apache ECharts library.

Jt.echarts(myChartConfig).use();

Input widgets

Button

Display a button widget.

boolean clicked = Jt.button("Click me").use();

Form button

Display a form submit button. For use with Jt.form.

boolean submitted = Jt.formSubmitButton("Sign up").use();

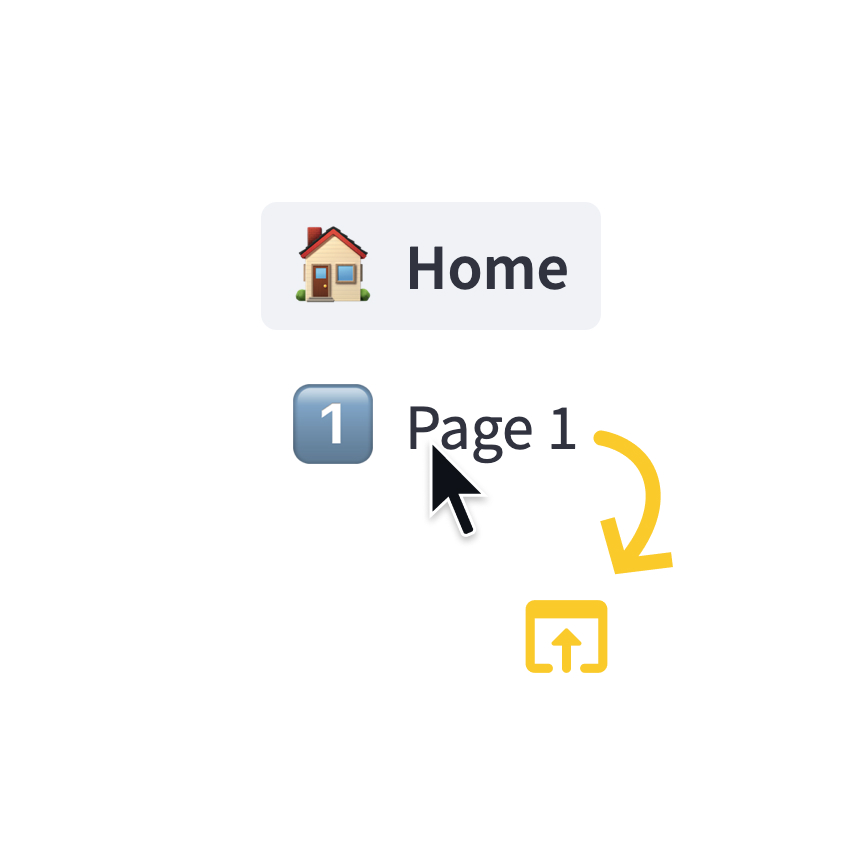

Page link

Display a link to another page in a multipage app.

Jt.pageLink("/dashboard").use();
Jt.pageLink("/users").label("See Users").use();

// external page
Jt.pageLink("https://github.com/javelit/javelit", "Github project").icon(":link:").use();

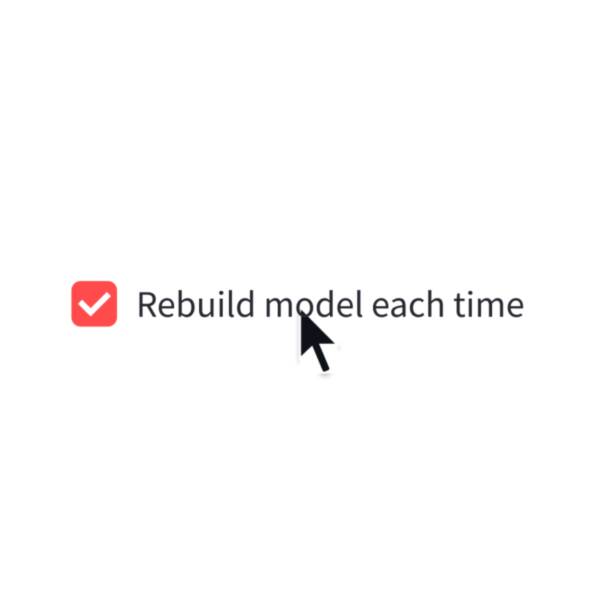

Checkbox

Display a checkbox widget.

boolean selected = Jt.checkbox("I agree").use();

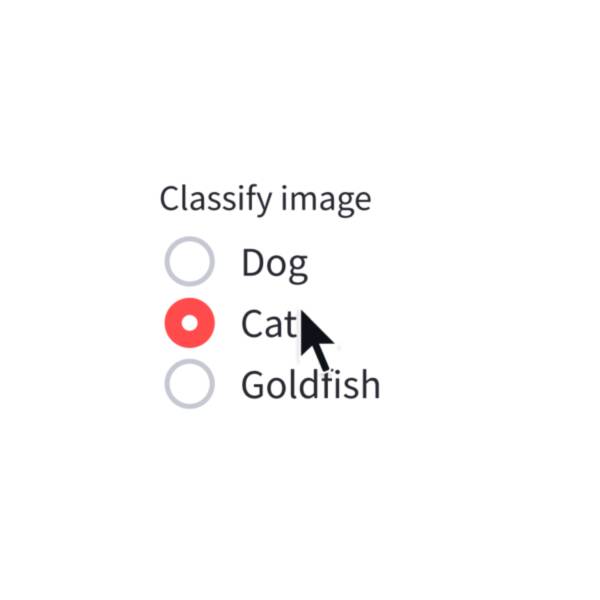

Radio

Display a radio button widget.

String choice = Jt.radio("Pick one", List.of("cats", "dogs")).use();

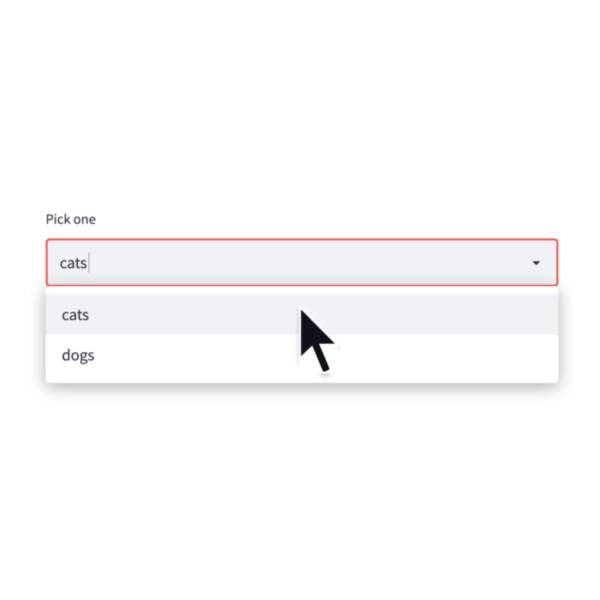

Selectbox

Display a select widget.

choice = st.selectbox("Pick one", ["cats", "dogs"])

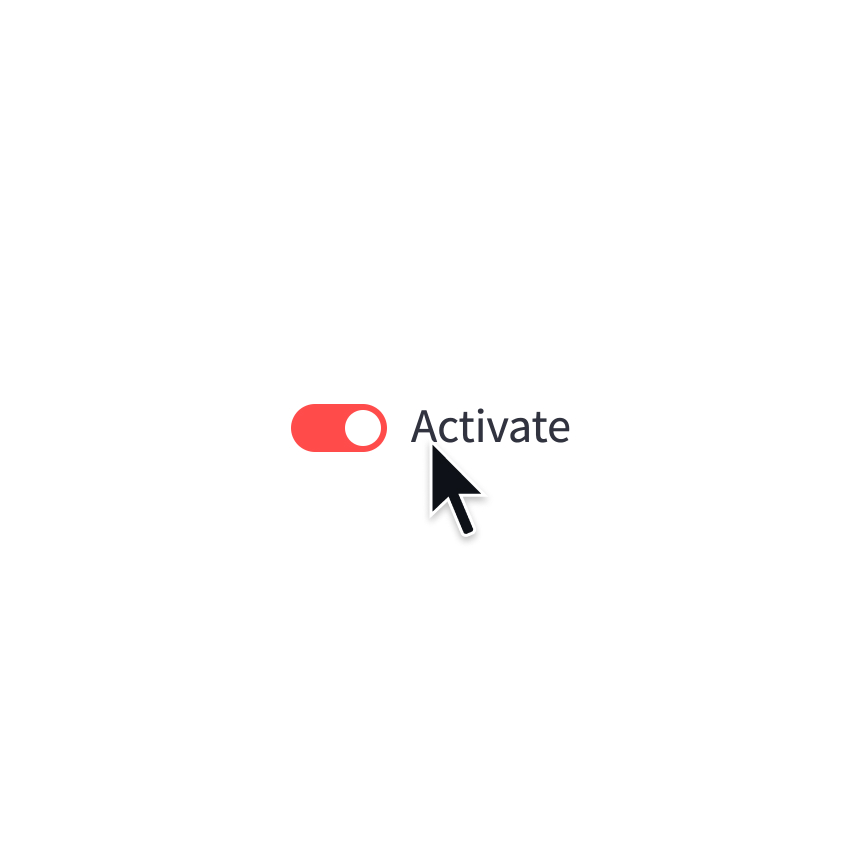

Toggle

Display a toggle widget.

boolean activated = Jt.toggle("Activate").use();

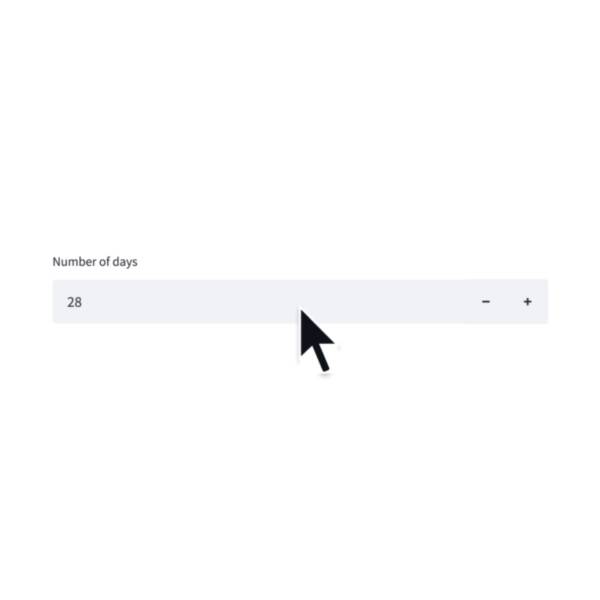

Number input

Display a numeric input widget.

Number choice = Jt.numberInput("Pick a number").use();

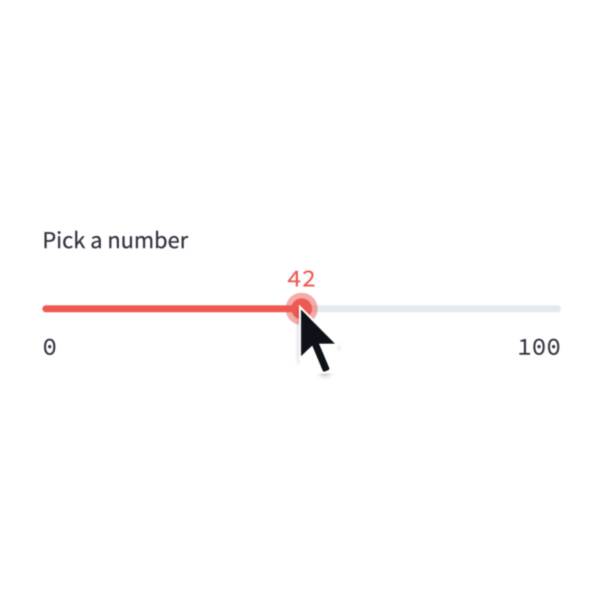

Slider

Display a slider widget.

int number = Jt.slider("Pick a number").use();

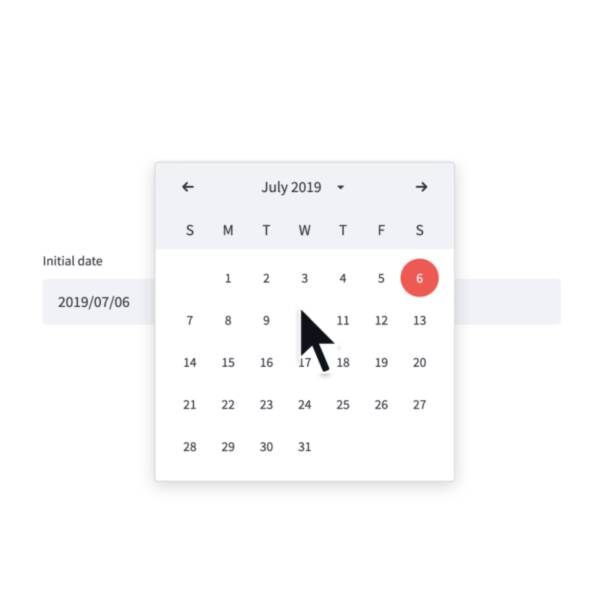

Date input

Display a date input widget.

LocalDate date = Jt.dateInput("Your birthday").use();

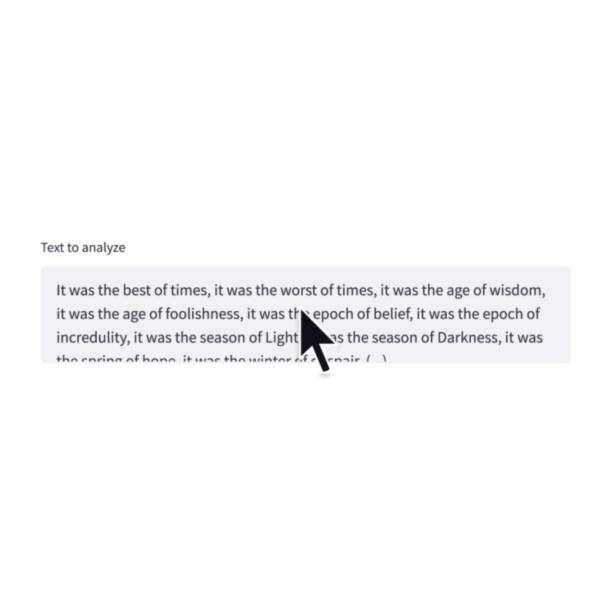

Text-area

Display a multi-line text input widget.

String text = Jt.textArea("Text to translate").use();

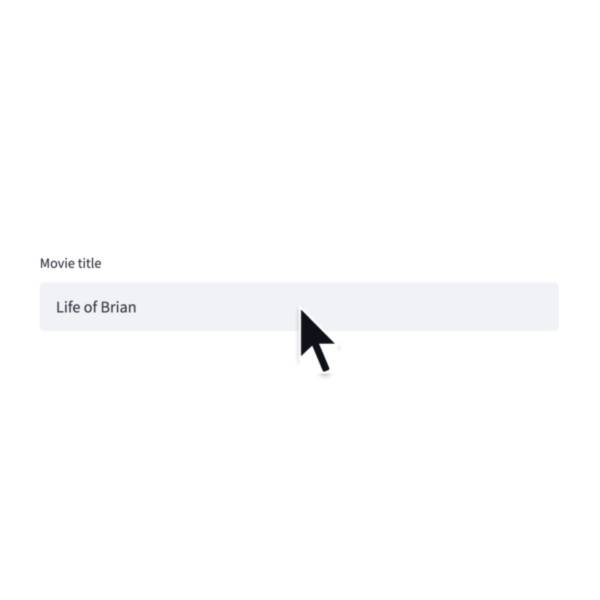

Text input

Display a single-line text input widget.

String name = Jt.textInput("First name").use();

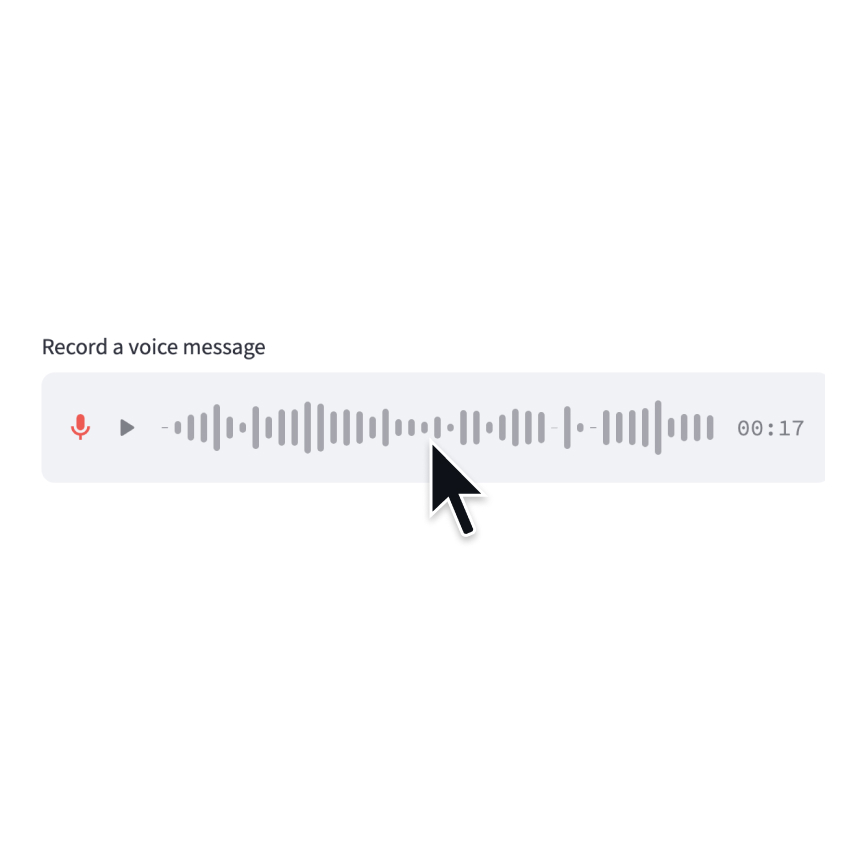

Audio input

Display a widget that allows users to record with their microphone.

speech = Jt.audioInput("Record a voice message").use();

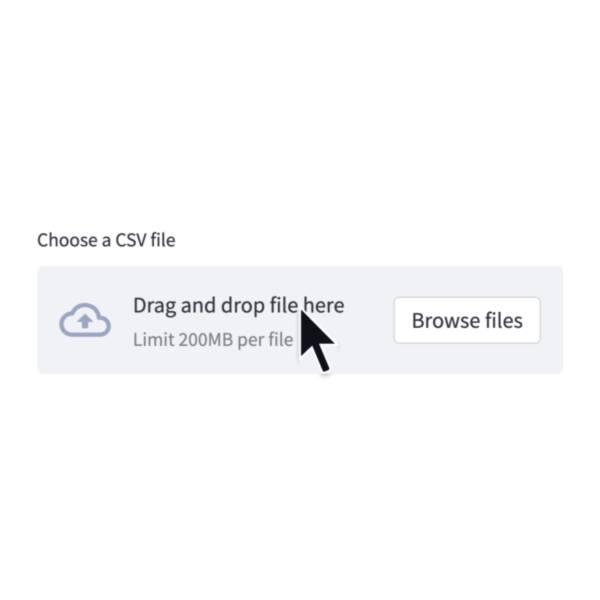

File uploader

Display a file uploader widget.

UploadedFile data = Jt.fileUploader("Upload a CSV").use();

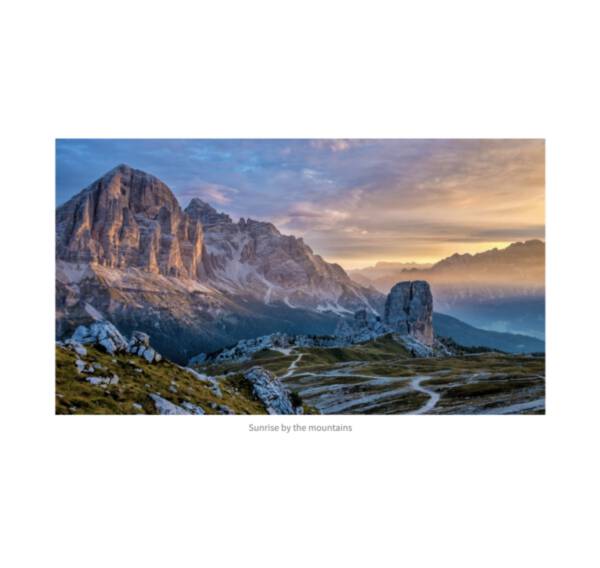

Media elements


Display an image or list of images.

Jt.image(byteArray).use();
Jt.image(Path.of("image.jpg")).use();
Jt.image("https://example.com/myimage.jpg").use();

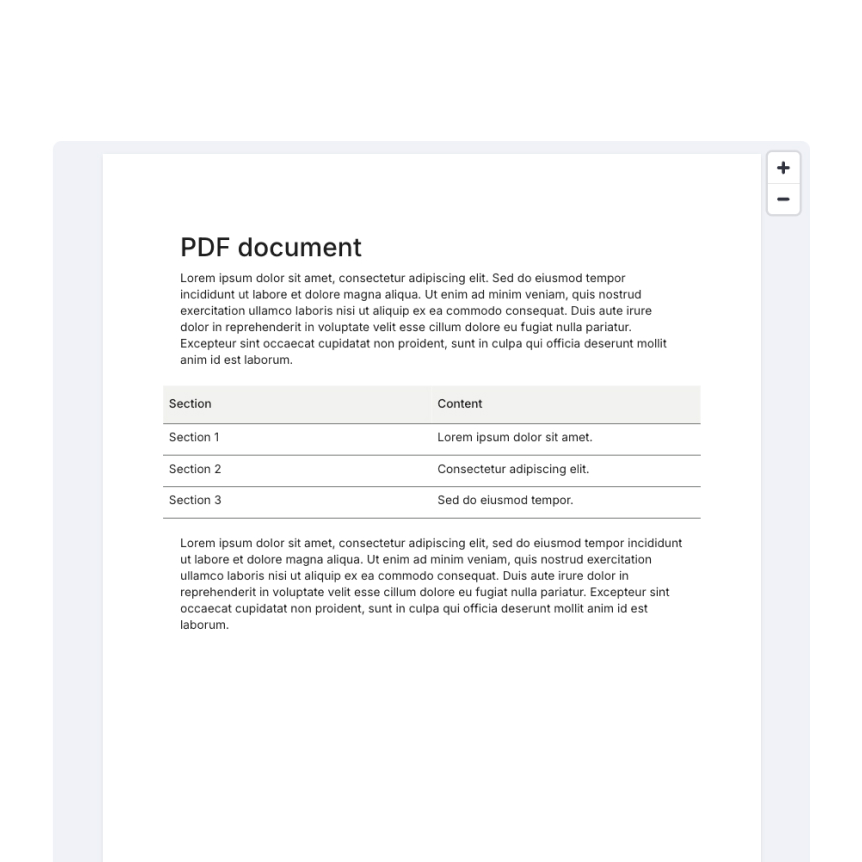

PDF

Display a PDF file.

Jt.pdf(byteArray).use();
Jt.pdf(Path.of("document.pdf")).use();
Jt.pdf("https://example.com/mydocument.pdf").use();

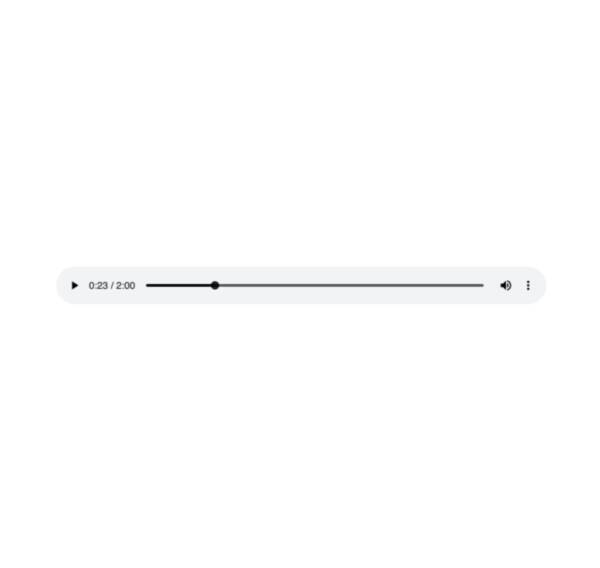

Audio

Display an audio player.

Jt.audio(byteArray).use();
Jt.audio(file).use();
Jt.audio("https://example.com/myaudio.mp3").use();

Layouts and containers

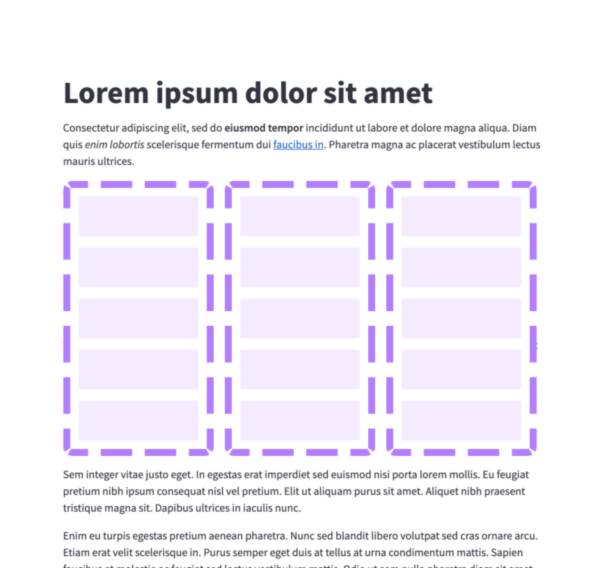

Columns

Insert containers laid out as side-by-side columns.

var cols = Jt.columns(2).use();
Jt.text("This is column 1").use(cols.col(0));
Jt.text("This is column 2").use(cols.col(1));

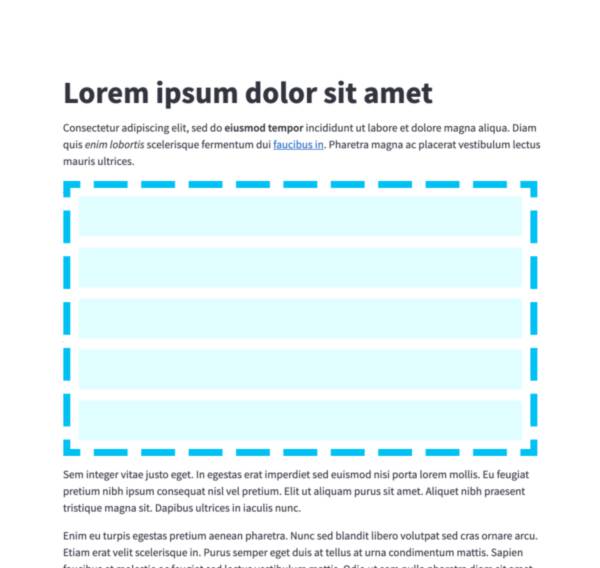

Container

Insert a multi-element container.

var c = Jt.container().use();
Jt.text("This will show last").use();
Jt.text("This will show first").use(c);
Jt.text("This will show second").use(c);

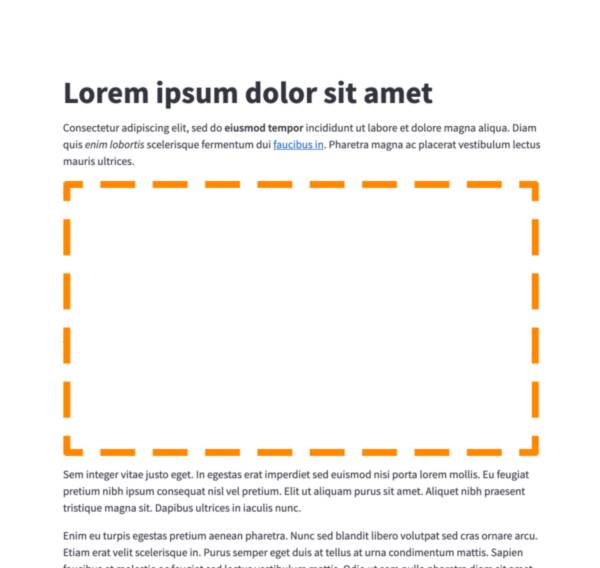

Empty

Insert a single-element container.

var e = Jt.empty("my-empty").use();
Jt.text("This will show last").use();
Jt.text("This will be replaced").use(e);
Jt.text("This will show first").use(e);

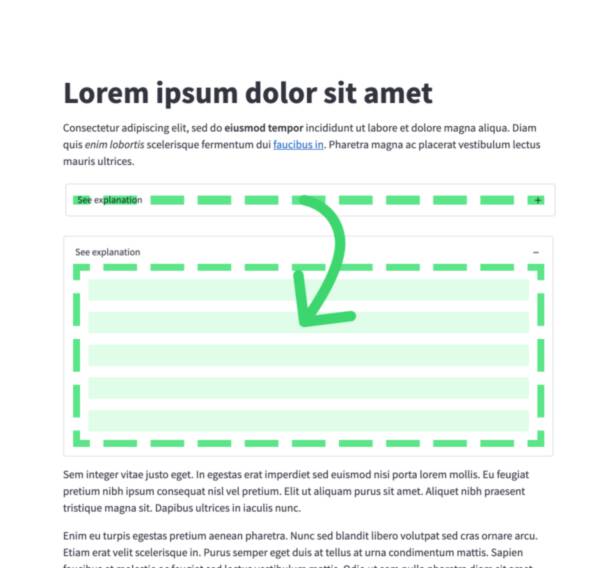

Expander

Insert a multi-element container that can be expanded/collapsed.

var exp = Jt.expander("Open to see more").use();
Jt.text("This is more content").use(exp);

Popover

Insert a multi-element popover container that can be opened/closed.

var pop = Jt.popover("Settings").use();
Jt.checkbox("Show completed").use(pop);

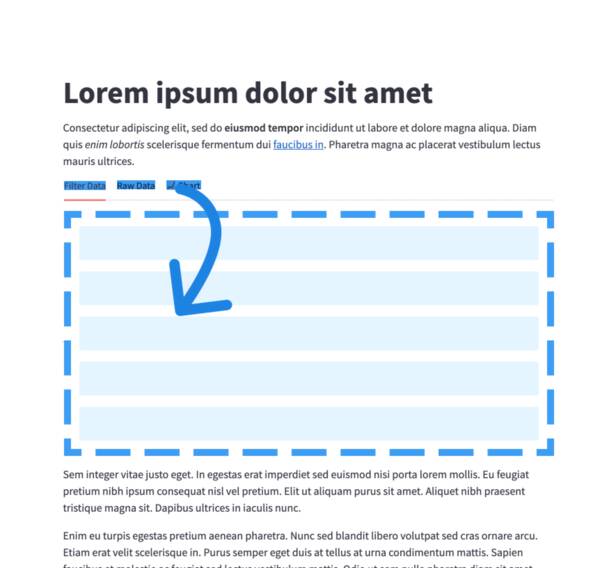

Tabs

Insert containers separated into tabs.

var tabs = Jt.tabs(List.of("Tab 1", "Tab 2")).use();
Jt.text("This is tab 1").use(tabs.tab(0));
Jt.text("This is tab 2").use(tabs.tab(1));

Status elements

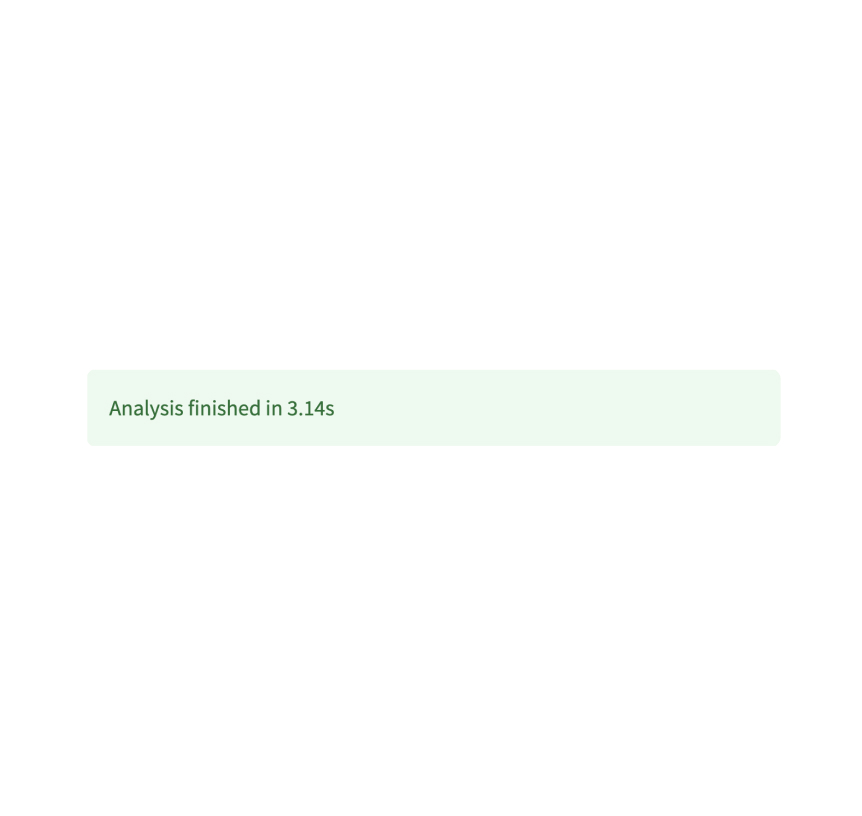

Success box

Display a success message.

Jt.success("Match found!").use();

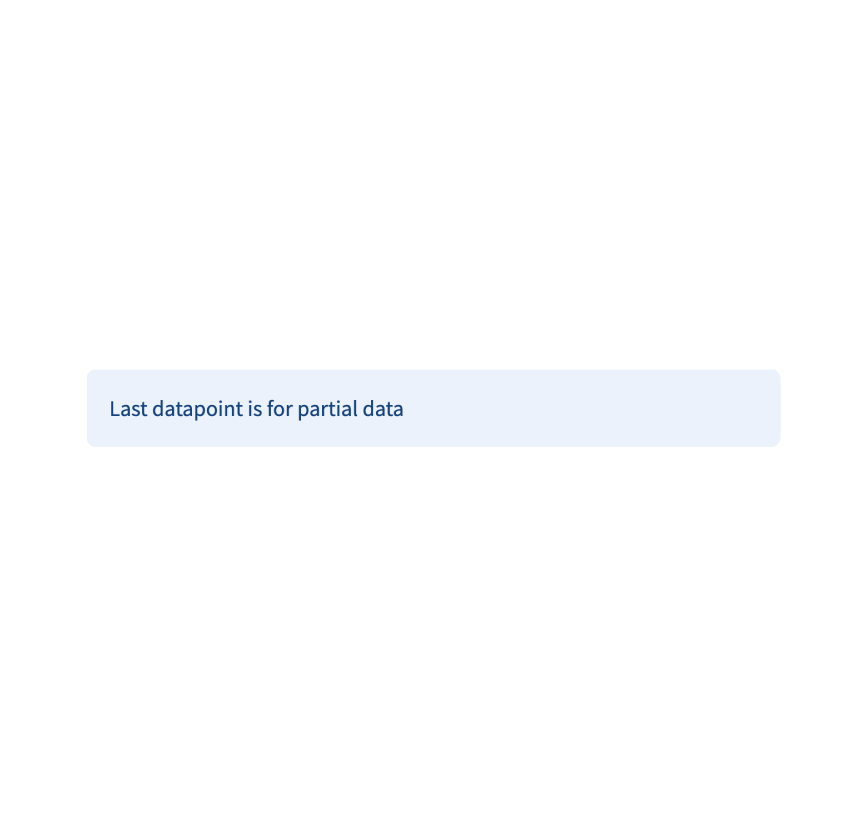

Info box

Display an informational message.

Jt.info("Dataset is updated every day at midnight.").use();

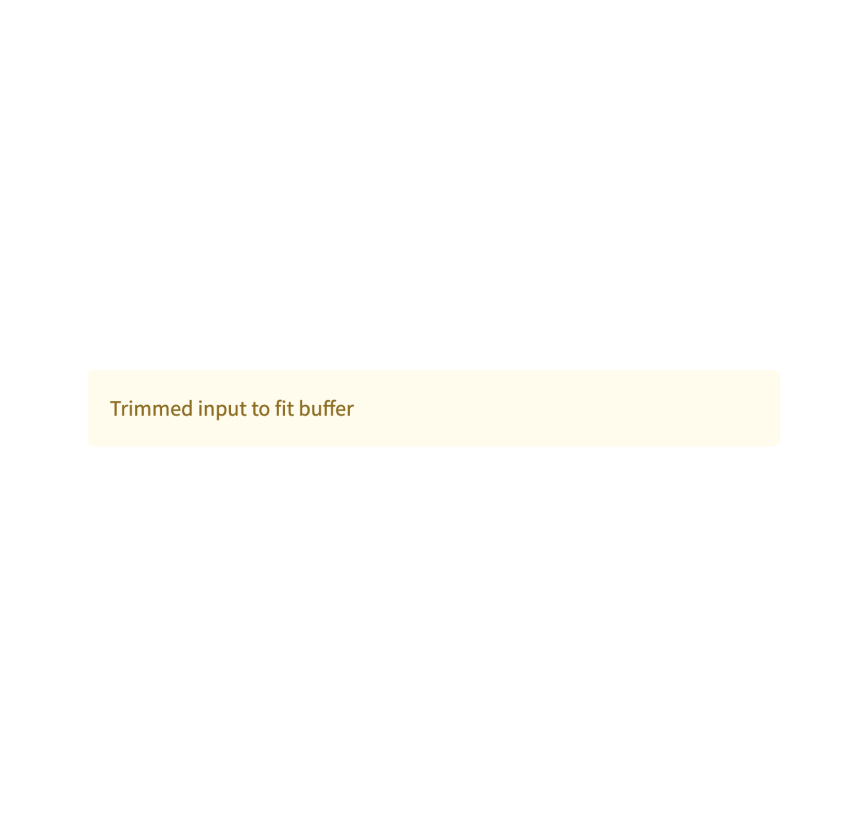

Warning box

Display warning message.

Jt.warning("Unable to fetch image. Skipping...").use();

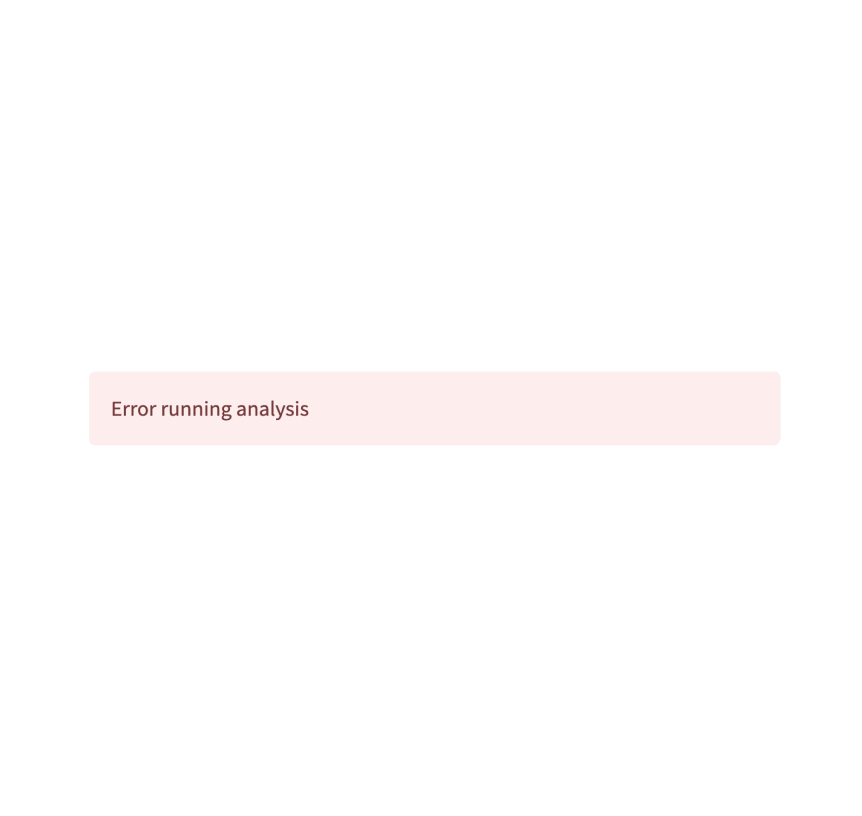

Error box

Display error message.

Jt.error("We encountered an error").use();

App logic and configuration

Navigation and pages

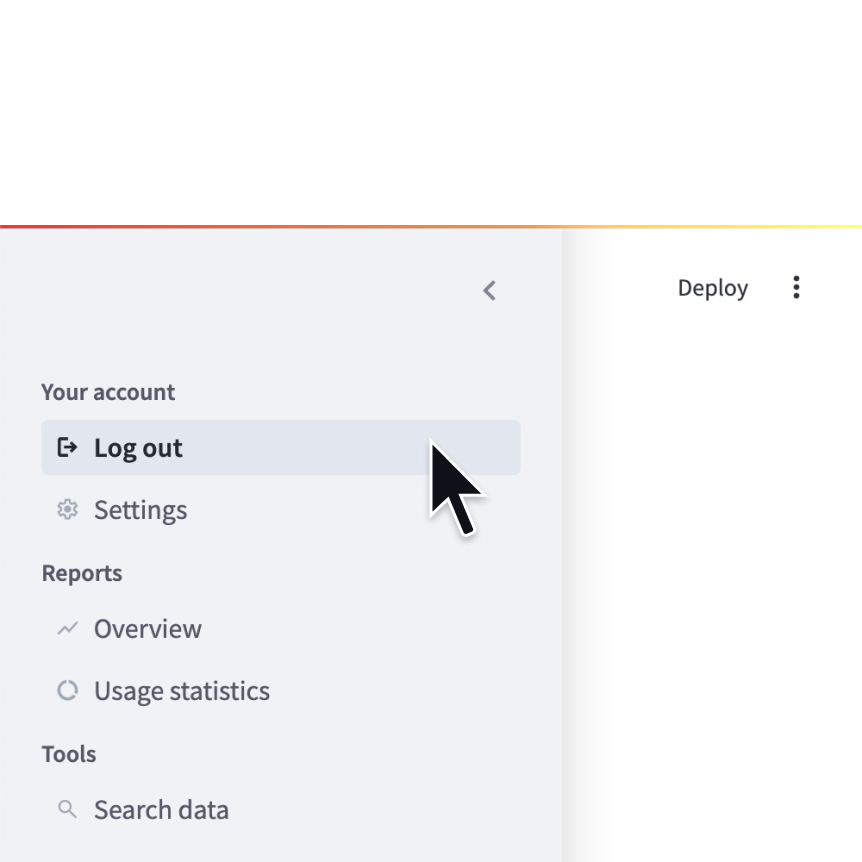

Navigation

Configure the available pages in a multipage app.

var currentPage =
        Jt.navigation(
            Jt.page("/dashboard", DashboardPage::app).title("Home").home(),
            Jt.page("/users", () -> users()).icon("👥"),
            Jt.page("/queries", () -> {Jt.title("Queries").use(); ...}))
        .use();

currentPage.run();

Page

Define a page in a multipage app.

Jt.page("/settings", () -> settings())
        .title("Settings")
        .icon(":settings:");

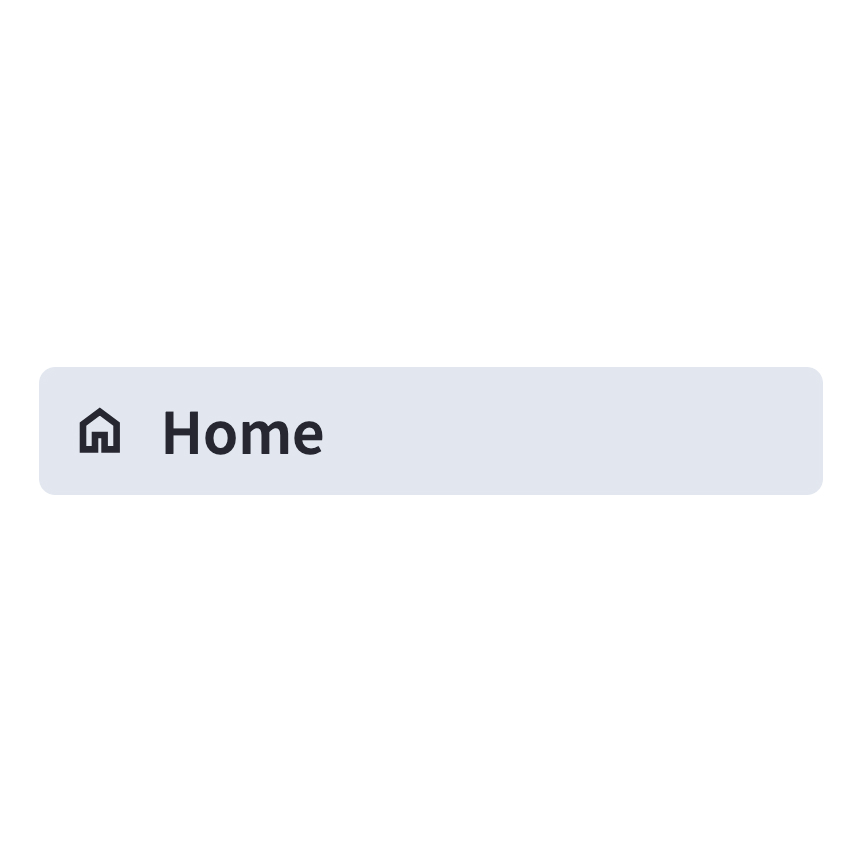

Page link

Display a link to another page in a multipage app.

Jt.pageLink("/dashboard").use();
Jt.pageLink("/users").label("See Users").use();

// external page
Jt.pageLink("https://github.com/javelit/javelit", "Github project").icon(":link:").use();

Switch page

Programmatically navigates to a specified page.

Jt.switchPage("/users");

// go home
Jt.switchPage(null);

Execution flow

Forms

Create a form that batches elements together with a "Submit" button.

var form = Jt.form().use();
String name = Jt.textInput("Name").use(form);
String email = Jt.textInput("Email").use(form);
boolean submitted = Jt.formSubmitButton("Sign up").use(form);

Rerun script

Rerun the script immediately.

Jt.rerun()

Custom Components

HTML

Render an HTML string in your app.

Jt.html("<p>Foo bar.</p>").use();

Developer tools

App testing

App Testing

Learn how to test your Javelit applications with unit tests, integration tests, and automated testing frameworks. Ensure your apps work correctly across different scenarios and user interactions.

@Test
public void testButtonIsVisible() {
    PlaywrightUtils.runInSharedBrowser(testInfo, app, page -> {
        assertThat(page.locator("jt-button").first()).isVisible(WAIT_1_SEC_MAX);
    });
}
